Series FLT · Marine Buoyancy
Pipe Floater
MDPE shell, PU foam filled — ideal replacement for traditional steel buoys.

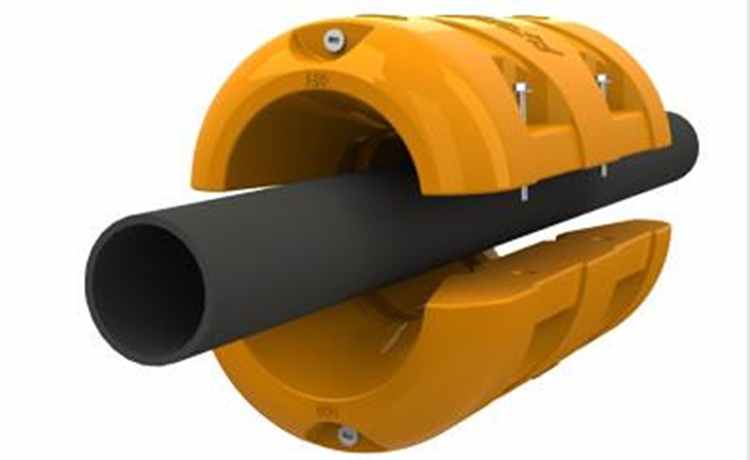

Heartwork FLT pipe floater features a tough medium-density polyethylene shell filled with high-strength polyurethane foam. With a rational structure and superior performance, it serves as an ideal replacement for traditional steel buoys for offshore dredging pipelines — clamping around DN 200–1200 pipe in matched pairs with M12 stainless bolts.
Key Features
Why field crews specify Heartwork
Impact tolerant
Excellent toughness and impact resistance — perfectly applicable for offshore construction.
Lightweight handling
Reduces transportation and migration costs versus steel buoys — no crane for installation.
Wear & corrosion resistant
Outstanding wear and corrosion resistance — a much longer service life than steel.
PU-foam filled
MDPE shell filled with high-strength polyurethane foam — punctures do not sink the pipeline.
Variants In This Line
Choose the configuration that fits your job
01
FLT500 × 700
For pipe DN 160/180 — length 700 mm, buoyancy 80 kg, M12×100×4 bolts.
02
FLT500 × 800
For pipe DN 200/220/250 — length 800 mm, buoyancy 130 kg, M12×100×4 bolts.
03
FLT550 × 900
For pipe DN 280 — length 900 mm, buoyancy 190 kg, M12×100×4 bolts.
04
FLT600 × 1000
For pipe DN 50/140 — length 1000 mm, buoyancy 220 kg, M12×100×6 bolts.
05
FLT700 × 800
For pipe DN 320/335/360 — length 800 mm, buoyancy 220 kg, M12×100×4 bolts.
06
FLT800 × 1100
For pipe DN 400/450 — length 1100 mm, buoyancy 520 kg, M12×100×6 bolts.
Specifications
The technical range
| Fits pipe | DN 200 – DN 1200 |
| Shell material | MDPE (medium-density polyethylene) |
| Core | High-strength polyurethane foam |
| Buoyancy range | 80 – 520 kg per floater |
| Assembly | Two-piece clamshell · M12 stainless bolts |
| Colour | Signal orange (custom on request) |
| Application | Ideal replacement for steel buoys |
All specifications are customisable to project requirements — send your drawing for a matched proposal.
Applications
Where it deploys
- Offshore floating dredge lines
- Land reclamation across water
- Pipeline route marking
- Offshore dredging pipelines
- Wave-driven pump transfer lines
- Tidal zone floating pipeline
